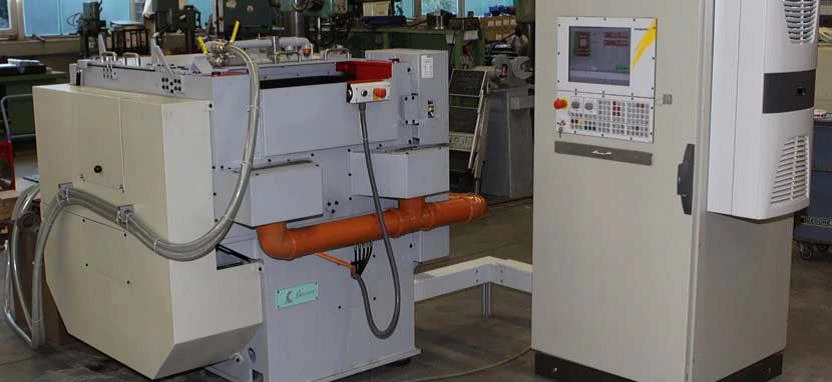

CNC-peripheral grinding machine with up to three axes for plunge grinding of serrated edges on knife blades (e.g. bread or steak knives), scissors or similar workpieces
• CNC-controlled with display of all operating information on monitor screen
• horizontal wheel motion by AC servo motor driven by preloaded precision ball screw
• standard maximum grinding width 14", other lengths by option
• simple workpiece oriented programming with entry of discrete dimensions/parameters
• dressing of the grinding wheel with diamond coated dressing roll, tool steel crush roll or programmable single point diamond
• CNC orientation against a straight grinding wheel e.g. in order to grind steak knives
• automatic compensation of workpiece plunge travel after each dressing cycle and maintenance of selected rotational wheel speed (by frequency variation)
• vertical blade transport axis available as an option
• single axis CNC-grinding machine
• pick up of workpieces by pneumatic clamping device
• dressing of grinding wheel by diamond coated shape roll made of tool-steel
