Standard Big-Plus Spindle
All Ganesh VFM machines are all built with the Big-Plus precision ground dual-contact spindle providing you with these important advantages:
•Increased tool rigidity
•Reduced tool runout
•Increased tool life
•Increased cutting capability
•Superior tool length repeatability due to positive face contact
Dual Contact –Both the flange and the flange face of the tool are in positive registration. Use standard tools for general work, and Big-Plus toolholders in demanding applications.
Mitsubishi M-720M High-Performance CNC Control Advantages
Advanced 64-bit control with a highly-efficient RISC CPU processor
Processes 135,000 blocks per minute with 680-block look-ahead
NANO control with Super-Smooth Surface finish generator
4GB High-Speed Data Server & Auto power-off
20GB Hard Drive for extensive Program Storage
Tool-life management by tool time in cut or number of workpieces
On-the-fly program editing of an active program
Advanced Macro programming w/ if/then looping, program branches
3-Year Mitsubishi control and drives warranty
Complete full-function control with all features –no endless list of expensive options!
Standard Ganesh VFM Machine Offering
Ganesh “High-Speed” EXPRESS series with Cross-Roller Ways & #40-taper spindles:

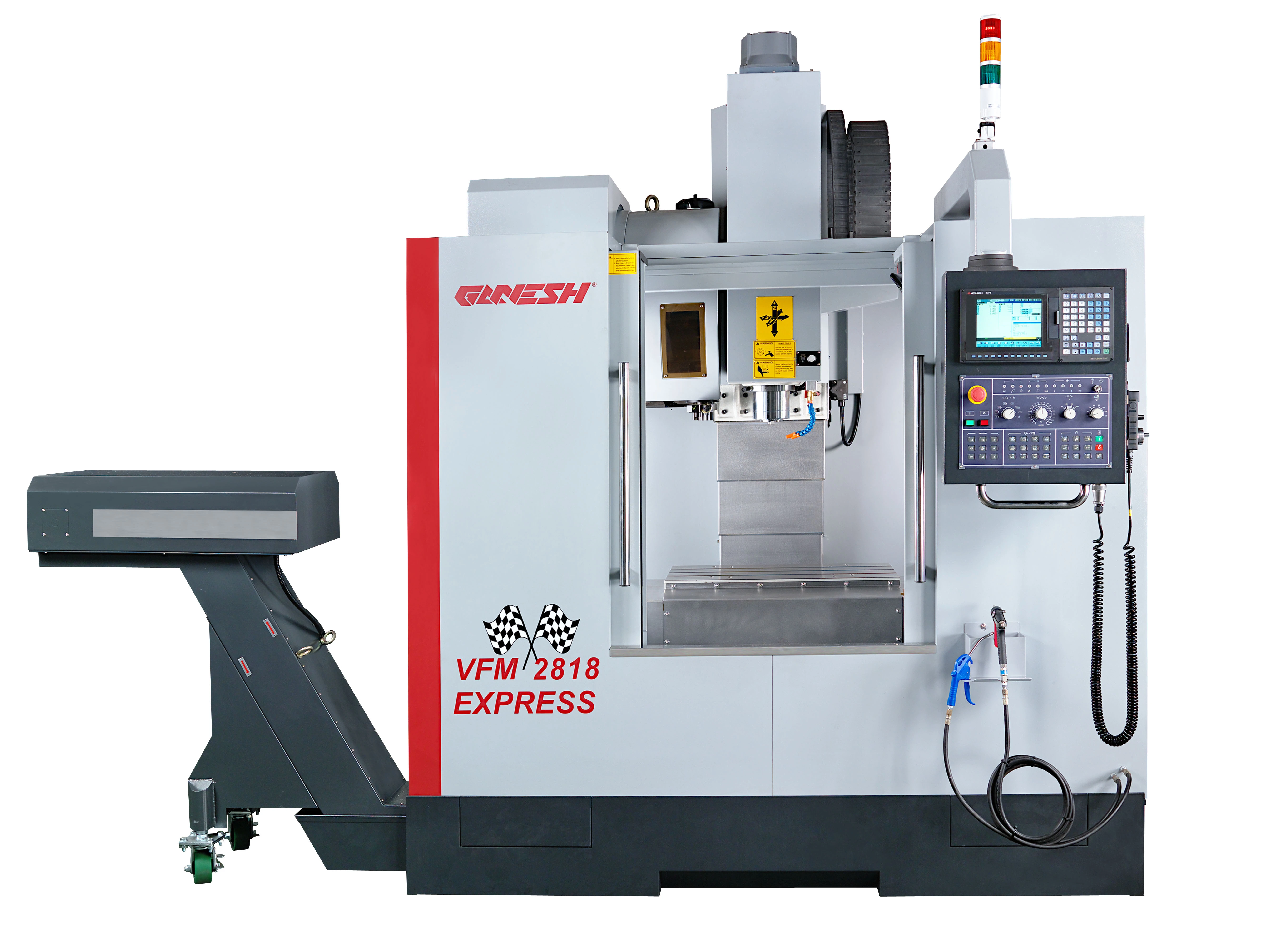

VFM-281828” x 18”, 15-HP, 1417 ipm, 29.9” x 16.53” table, 24-tool ATC
VFM-402440” x 24”, 30-HP, 1417 ipm, 43.2” x 19.98” table, 30-tool ATC
VFM-512751” x 27”, 30-HP, 1181 ipm, 57.1” x 27.56” table, 30-tool ATC
VFM-632863” x 28”, 30-HP, 1181 ipm, 68.9” x 27.56” table, 40-tool ATC
Standard with: 12,000 RPM Direct-Drive-Spindles, 300-PSI Through-The-Spindle Coolant
4th& 5thAxis wiring, Twin-Arm Tool Changer, Full machine enclosure including top covers.
Ganesh “Box-Way” series, with 2-speed geared heads & #50-taper spindles:
VFM-4024B40” x 24”, 30-HP, 1181 ipm, 43.2” x 19.98” table, 32-tool ATC
VFM-6328B63” x 28 ”, 30-HP, 945 ipm, 68.9” x 27.56” table, 40-tool ATC
VFM-7035B70” x 35”, 30-HP, 590 ipm, 76.8” x 35.43” table, 40-tool ATC
VFM-8635B86” x 35”, 30-HP, 590 ipm, 92.5” x 35.43” table, 40-tool ATC
Standard with: 8,000 RPM 2-Speed geared-head spindles, 300-PSI Thru-Spindle-Coolant
4th& 5thAxis wiring, Twin-Arm Tool Changer, Full machine enclosure including top covers.
All machines include the 64-bit Mitsubishi M720 control with 680-block look-ahead, and 64,000 block per minute processing speed. Fanuc 0iMD control is optional.
“Big-Plus” precision ground spindles with both flange & flange face contact are standard.
The GANESH VFM line of Vertical Machining Centers provides you with premium machine features and performance, at commodity machine pricing. Get the Competitive Edge with Ganesh! The most productive value for your machine tool investment!
