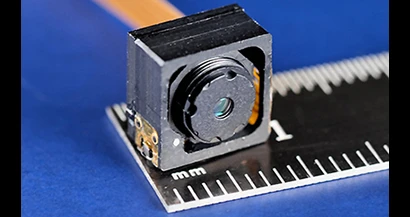

New Scale Technologies Inc. has received a U.S. patent for its UTAF (ultra-thin auto focus) piezoelectric lens actuator module measuring only 8.5mm x 8.5mm x 3.8mm. The UTAF actuator module integrates New Scale’s UTAF piezoelectric beam motor with a drive IC and position sensor IC for closed-loop motion control. Patent # 8,279,541 extends coverage to the module’s precision pin bushing system that moves the lens in a straight line with dynamic tilt of less than 0.1°. This low tilt is a critical requirement for high-megapixel cameras and imaging systems. The patent also covers a unique flexure preload or magnetic preload system that produces substantially zero additional friction in the bearing guide, irrespective of the location along the optical centerline. This allows the module to lift a mass at least three times greater than the typical lens mass of 0.25g, insuring a low sensitivity to gravity orientation for the camera system.
The U.S. patent was issued October 2, 2012, by the U.S. Patent and Trademark Office to inventors David Henderson, Todd Haran, Matt Wrona, Qin Xu, and Daniele Piazza.
