ISCAR is adding a TANGMILL ID5 PCD wiper insert and 2 HELIMILL inserts, tipped with IB85 PCBN, for machining cast iron and a wide range of difficult-to-machine materials at high cutting rates.

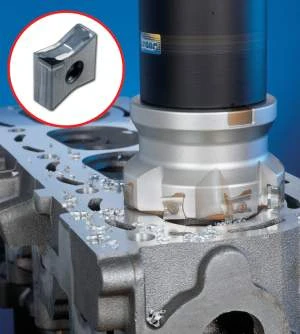

The new LNAR 1106PN-R-S-W ID5 PCD tipped wiper insert has a very large frontal radius and sharp cutting edge. It provides a uniform edge and a surface finish of less than Ra 0.3μm.
The new insert can be used on the standard face mills or the new axially adjustable face mills with one or two wiper inserts (most recommended).
ISCAR’s new HELIMILL insert ADKW 1505 PDER IB85 has an IB85 PCBN brazed tip and can be used on 90° milling cutters for semi-finishing and finish machining on cast iron. The insert features a 0.031” corner radius and a honed cutting edge (0.001”). It can be used on the standard F90AD...-SFR or the E90AD ...-HSK63-S axially adjustable milling cutters.
By adjusting the axial position of the inserts, it is possible to obtain a 0.3μm - 0.7μm surface finish.
IB85 is a fine grain Polycrystalline Cubic Boron Nitride grade, the small grain size enables grinding a very sharp cutting edge and achieving high surface quality, which provide excellent tool life.
The IB85 grade can be used for machining a wide range of difficult to machine materials at high cutting rates , and provide excellent tool life. IB85 contains 85% PCBN with Al, Co, and W binder. It is a very strong and tough material which can be used for heavy roughing and interrupted cuts.
The range of materials covered by IB85 includes hardened and cast steel of over 45 HRc, grey and nodular cast iron, powder compacted and sintered metals and heat resistant alloys.
