Programmable mini-drill presses have been on the market for many years for single hole drilling applications where small precision holes are required. Consistently, however, there have been limits to their overall performance and programming capabilities. In addition to limited motor speed/direction control and low torque, the brush motors could wear through a set of brushes in 6 weeks in continuous use applications.

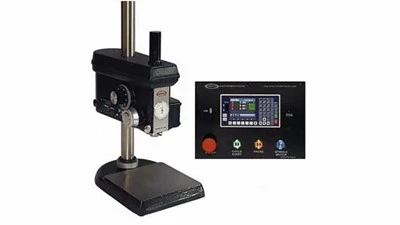

As a way to deliver maximum performance and reliability, Eastlake, Ohio-based Servo Products Co., a progressive designer and manufacturer of a broad line of knee-type milling machine accessories since 1964, has recently developed their new mini drill press and the 708-CNC control option. Unique to the market and made in the USA, the Mini Drill Press and microprocessor-controlled quill feed unit represents a complete re-design to modern technology–featuring a brushless DC motor (no carbon dust) with higher RPM; and with the 708-CNC option, precision program control for peck drilling, and reaming cycles, and deep hole drilling.
Essentially a complete mini drill press with a brushless motor programmed via CNC panel, Servo’s model 708-CNC offers the ability to download, upload, and store hundreds of integrated speed and motion direction programs on one controller…delivering infinite program control.
Servo mini-drill press features:
Brushless DC motor: Ideal for continuous use (24/7) applications, where downtime and carbon dust is not desirable, Servo’s mini drill presses with the Model 708-CNC control keeps running without the need to change brushes. It also offers better speed regulation and more torque.
CNC panel control: Switching the spindle direction from forward to reverse and back, and spindle RPM controls, are now the standard on SERVO’s Model 708-CNC. The programmable control now integrates spindle RPM, direction, and motion control via a true CNC panel. If you program 12,500rpms and 0.25ipm travel…that’s exactly what you’ll get.
Servo mini-drill press/key specs:
- Available with Yukiwa or Albrecht chucks or WW collets for even more precision
- 12”, 19”, or offset column and inch or metric calibration
- Spindle runout achieves a very high accuracy / precision of 0.0002” TIR
- Encoder on the drive motor makes movement very precise and accurate–repeatable to within 0.0005”
- Optional foot switch (M-710) can be added to any Servo drill press
Competitively priced, Servo’s Mini Drill Press and Model 708-CNC mini-drill press delivers high-reliability and maximum performance for single-hole drilling applications including: automotive, aerospace, computer and electronic, medical devices, musical instruments, jewelry, EDM, and molded parts – as well as for laboratory and engineering department applications.
