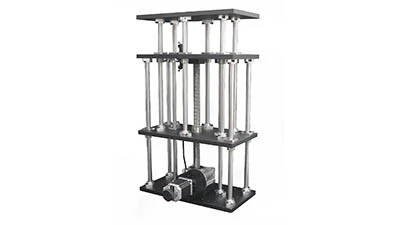

Van Nuys, California – The AT20-300 Motorized Vertical Lift Stage from Optimal Engineering Systems Inc. (OES) offers a vertical lift of 300mm (11.811") and 50kg (110.2 lb) capacity. The 400mm x 200mm (15.748" x 7.874") stage has a pattern of threaded mounting holes. The rigid box construction of the moving component of the elevator stage travels on six slide rails for smooth vertical travel and parallelism of the table and mounting surface. It features: 3.315µm (non-Micro-Step) resolution, 5µm repeatability, and 15µm positional accuracy.
Applications for the AT20-300 Motorized Vertical Lift Stage include: positioning of lab equipment, testing, inspection, assembly, sampling, laser drilling, and machining.
The AT20-300 Motorized Vertical Lift Stage (lowered position) is 539mm (21.221"). It is constructed of black-anodized aluminum alloy and steel shafting, and weighs 23kg (50.7 lb).
Options include: servo motor, optical encoder, and complete plug-and-play system with a motion controller.
