Van Nuys, California – To complement the expanding line of single and multi-axis motion control stages, Optimal Engineering Systems (OES) has added the ADAGIO-X-STPR series of motion control systems. The ADAGIO-X-STPR Series of rack-mounted stand-alone stepper motor controllers are cost effective solutions for controlling and driving single and multi-axis stepper motor stages such as: AQ single and dual axes X and XY series stages, the YPR series of 3-axes Yaw, Pitch, and Roll Stages, the 4 axes XYZR (a 3 XYZ linear axes plus a vertical rotary stage.

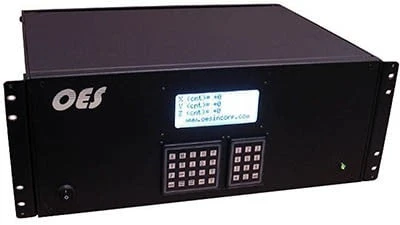

Each 19" rack mounted ADAGIO-X-STPR motion controller includes a power supply, and motion controller cards for 1, 2, 3, or 4 axes, and micro-stepper drivers for single and two-phase steppers requiring up to 7A per phase.
Capabilities include:
- Set acceleration
- Set velocity
- Set position
- Absolute move
- Relative move
- Find home
- Zero position counter
- Go to position zero
- Stop all motors
- Limit switches
Easy to install and use, these stepper motor controllers are totally integrated solutions featuring:
- Externally controlled, Stand-alone, and Manual operation
- 4-line LCD
- 32-key keypad
- Analog and digital inputs and outputs that can accommodate Quadrature Encoder feedback for position verification and analog joysticks, trackballs
ADAGIO-X-STPR motion controllers operate on an input power of 115VAC or 230VAC, 50Hz to 60Hz, have Auto Current Reduction, and can be ordered plug-and-play when ordering any one of the many single or multi-axis stages available from OES.
