In automated environments, quality control relies on continuous measurement and test data monitoring. Engineers need systems to ensure the precise and secure positioning of test parts, which is essential for achieving reliable and accurate measurement results.
To address this, leading global standard components manufacturer norelem has introduced an innovative new line of modular clamping systems (34005) for metrology. These new clamping systems stand out for offering significant benefits to engineers and technicians by providing a flexible, modular solution that adapts to the evolving needs of various industries.
Unlike traditional clamping technologies, which require significant force, norelem’s systems are designed to use minimal clamping force, making them ideal for quickly and efficiently constructing even the most complex setups.
For engineers, this means faster workflows, reduced fatigue and fewer errors, translating into higher productivity and better measurement accuracy. The system’s flexibility also extends to a wide range of applications, from labelling and laser technologies to handling and the food industry, ensuring it meets the diverse needs of modern manufacturing.
“In addition to its versatility, the clamping systems are made to handle both single-time fixation and recurring measurement tasks,” says Marcus Schneck, CEO of norelem. “Should additional procedures be required, the modular design allows the systems to be easily adapted to meet those specific demands, ensuring engineers can always stay one step ahead.”
“At norelem, we offer solutions that support various measurement techniques, from tactile measurements on coordinate measuring machines, to optical measurement procedures and surface and contour measurements. Our systems are built to offer engineers the flexibility they need in any scenario.”
The modularity of norelem’s clamping systems is further enhanced by their range of combinable standard components, such as base holders, mounting modules, manipulation units and clamping elements. This means that engineers can quickly assemble new configurations or reconfigure existing setups with minimal disruption.
The system's resource-efficient and cost-effective nature saves time and materials, while its uniform interface ensures that all measuring points are accessible in a single setup, simplifying the measurement process and reducing the risk of user error.
“We have made the assembly and reconfiguration process easier by creating clamping component sets specifically designed for coordinate measuring machines, surface and contour measurements, and optical measurement systems,” adds Schneck. “These sets contain a predefined selection of foundation, mounting, and clamping pieces, which enable users to easily create both simple and complex setups.”
Thanks to their wear-resistant and maintenance-free design, norelem’s clamping systems offer long-term durability, making them ideal for reuse without recalibration. Additionally, introducing a new quick-change pallet system allows for retooling outside the optical measuring device, further reducing downtime and boosting productivity.

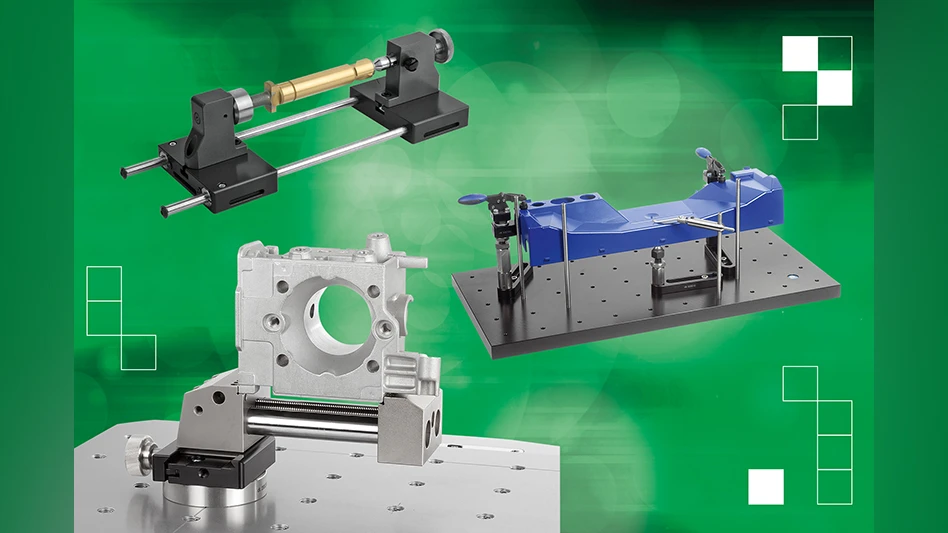

norelem's modular clamping systems for metrology
Providing a flexible, modular solution that adapts to the evolving needs of various industries
