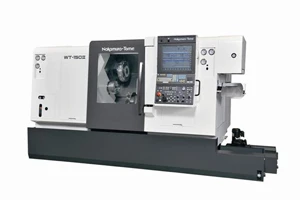

The Nakamura-Tome WT-150 II 8-Axis, Multitasking Turning Center features numerous upgrades from the base WT-150 design, has opposed twin-spindle, 2-turret construction, offering high-speed and high rigidity in a compact machine.
“With the introduction of the WT-150 II, we are able to offer simplified operations and greater efficiency and speed on a powerful multitasking Nakamura machine”, says Mr. Richard Parenteau, Director of Application Development at Methods Machine Tools, Inc.
For ease-of-operation, the WT-150 II features a 19" high-resolution, touch screen LCD panel. A FANUC 31i-B CNC control and a PC-based control (NT-IPS) provides a high-speed programmable machine controller for faster processing and several features for increased efficiency and maintainability. New standard functions include a spindle speed override switch, a program number search, C-axis synchronization and helical interpolation (for Y-axis models).
In addition, the distance between the spindles has been increased to 31.5" (800mm) while still providing the same compact machine footprint of 67.8ft² x 6.2ft (6.3m² x 1.9m). Also, with a maximum tool swing of 23" (570mm) on the upper and lower turrets, users can drill through a 2" (51mm) bar diameter from one side on the Nakamura WT-150 II.
The spindle motor features increased torque for greater speed, and the S3 rate is now available for high torque. Faster feed is provided via a rapid traverse of 787 ipm on the X-axis, and cutting feeds of 314 ipm on the X, Z, and B axes.
With simultaneous 4+4 axis control, the WT-150 II offers 8-axis machining capability. The system includes 12 station upper and lower turrets with a half-index capability, to hold a total of 48 tools for multiple processes. A left and right spindle with speeds up to 5,000rpm at 20/15 HP, and a 6" (150mm) chuck and 2' (51mm) bar capacity are provided. The WT-150 II is capable of 7.5hp milling capacity on the C-axis.
The WT-150 II features the latest Nakamura cover design with a large window, LED work light for maximum visibility and a lightweight door with maintenance equipment conveniently available in an arrangement at the front of the machine. CAMplete TruePath Turn / Mill software is standard on Nakamura-Tome Multitasking Turning Centers. CAMplete Turn / Mill software is an integrated suite of G-Code editing, optimization, analysis and verification tools, enabling a full range of turn/ mill functions. Methods Machine Tools, Inc. has been a leading supplier of precision machine tools, automation and accessories for over 50 years, providing installation, parts, service, and training through a network of dealers throughout North America. Methods Machine Tools Inc. is the exclusive U.S. and Mexico importer of Nakamura-Tome machines.
For more information, please contact Methods at 65 Union Avenue, Sudbury, MA 01776, TEL: (978) 443-5388, FAX: (978) 440-9405, Email: sales@methodsmachine.com or visit their website at http://www.methodsmachine.com
