Moticont

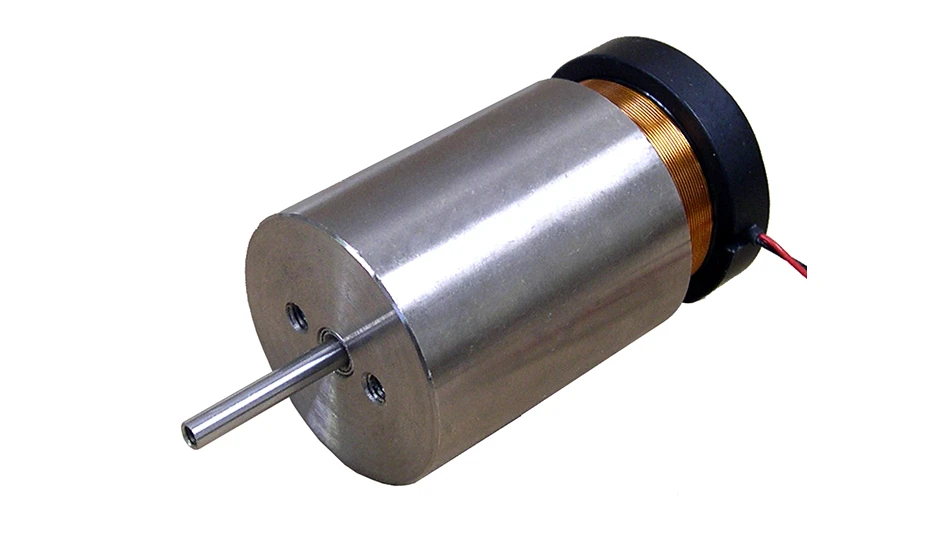

Moticont has released the next Linear Servo Motor of their GVCM-032 Series. The new GVCM-032-038-02M Linear Voice Coil Servo Motor with a 25.4mm (1.00in) stroke is a compact linear servo motor with built-in shaft and bearing and is just 31.8mm (1.250in) in diameter. The combined length with the coil end is 47.63mm (1.875in) long, and in the fully extended position, extends 28.6mm (1.125in) beyond the face of the housing. The shaft has an M2.2X0.45 x 0.20 thread, and the housing and coil ends have two M3.5X0.6 0.20 mounting holes on a 12.7mm (0.500in) bolt circle for easy integration into new or existing applications.
Also referred to as an electric cylinder, this compact linear servo actuator features a continuous high-force-to-size ratio of 8.3N (1.9 lb.) and 26.1N (5.9 lb.) of peak force at a 10 percent duty cycle. Featuring: High reliability, high speed, zero cogging, high acceleration/deceleration, and when used in a closed servo loop, very high accuracy and repeatability. These non-commutated brushless linear servo motors are clean and quiet. They are an ideal choice for: Haptic feedback, pipetting, medical devices, laser machining and drilling, work holding and clamping, scanners, laser beam steering and filtering, optical focusing, dynamic vibration absorption, testing, sorting, and assembly.
This and all Linear Voice Coil Servo Motors and Voice Coil Motor Stages from Moticont are available as complete Plug-and-Play Servo Control System.
