Arlington, Texas - The common way to produce flat bottom holes is to drill a hole followed by a milling or turning operation. A center drill is required to drill a hole that will act as a center of rotation for possible following operations. Center drilling is typically performed by using a drill with a specially shaped center drill. This machining cycle demands at least two or three tools as well as two different machining operations.
The new Iscar FCP interchangeable drilling head has created a new technology by introducing a single tool that provides a flat bottom-hole shape. With the introduction of this revolutionary quick-change insert, Iscar has eliminated several additional operations consequently down-timing the procedure of flat bottom holes.
FCP drilling heads
These drilling heads can be used with a standard SUMOCHAM holder, on which the heads can be mounted. There is no need to buy an additional drill body, which makes upgrading the tool a fast and easy process.
The FCP drilling heads were designed with center point geometry, enabling direct drilling capabilities by using a 5XD holder although longer overhangs will demand pre-hole operations.
The new drilling heads are available in 8mm to 25.9mm diameters and 0.1mm increments.
By eliminating the need for a pilot hole, the new drilling heads shorten machining cycle time and the number of tools required for the drilling operation. This can provide a substantial cost reduction.
In addition to the FCP drilling heads, ISCAR offers the new HCP geometry (patent pending) regarded as first choice for machining ISO-P and ISO-K material groups, which means that one drilling head can replace two other types, thus reducing the number of tools and stock items.
The major advantage of this product is its ability to penetrate the workpiece material quickly and efficiently. The drill’s unique nature is characterized by the pin end insert geometry that assures a very steady entry into the workpiece material with a continuous smooth cut. Proven unmatched results show superlative drilling featuring holes with high cylindricity values and excellent surface finish.
The new HCP drilling head can be mounted on any SUMOCHAM drill body featuring the appropriate pocket size.
The HCP drilling heads are made from IC908 TiAlN PVD nano layer coating grade and feature:
- Increased peeling resistance
- Higher wear resistance
- Stable and predictable wear progression
- Efficiency with MQL coolant
- High-surface quality
- Extended tool life

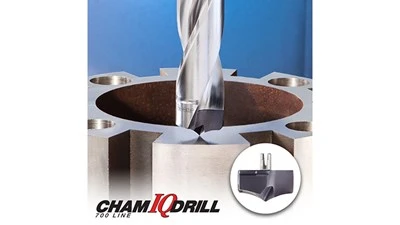

ISCAR has introduced an additional revolutionary drilling concept bearing the trade names SUMOCHAM-IQ and CHAM-IQ-DRILL.
These two families have a unique common cutting edge design that features concave sharp point geometry. ISCAR’s unique patented drilling head geometry reduces cutting forces at the penetration point of the initial drilling operation.
The drilling head geometry allows the drill to work with long overhangs without the need for a pilot operation. This phenomenon reduces machining time and tool inventory.
Drilling deep holes in cavities is no longer a barrier and has become substantially easy.
ISCAR’s new method of drilling holes and comprehensive thinking methods reduce costs and promise high productivity gains.
Source: Iscar Metals Inc.
