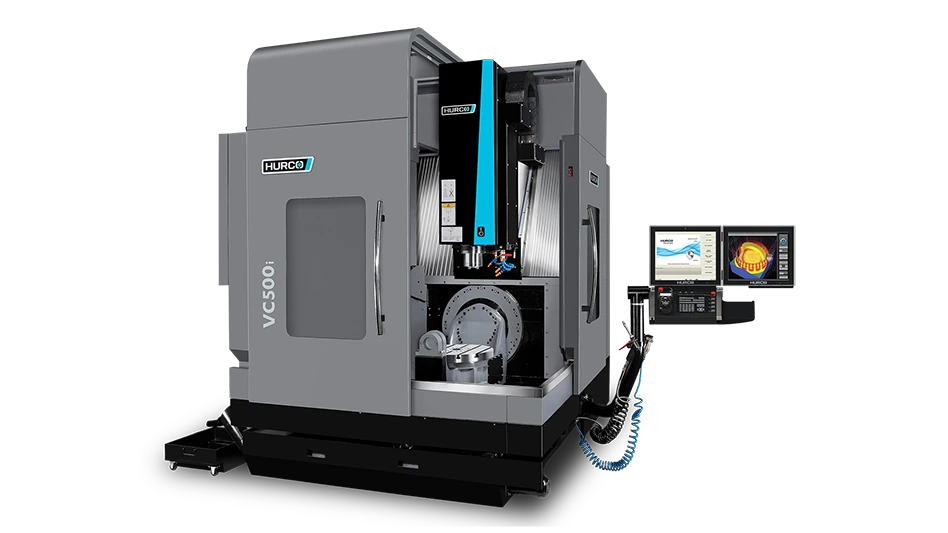

The VC500i (XYZ Travels: 20.5" x 17.7" x 15.8") is a 5-axis cantilever machining center that includes a 12,000 RPM spindle with a CAT40 spindle taper. The VC Series by Hurco was designed for customers to support a wide range of parts and allows machinists to use standard length tooling due to the B-axis configuration. The B-axis provides superb undercutting ability with a full 110° in both positive and negative directions. Solid one-piece cast iron frame optimized with both static and dynamic Finite Element Analysis (FEA).
The 5-axis VC Series B-axis trunnion style configuration also allows for shorter tools to be utilized when cutting smaller parts. When cutting smaller parts on a traditional A-axis trunnion, the tools approach the part from behind the A-axis trunnion. This means when running smaller 5-axis parts on larger machines, the operator is forced to use longer tools for clearance. Since a B-axis trunnion tilts around the Y-axis, the tool is always approaching the part from a safe direction and the possibility for interference is much less.
The Hurco VC500i is equipped with the Hurco control powered by WinMax software and the patented motion system called UltiMotion. The control helps machinists and job shops be more productive and profitable by supporting many programming methods: conversational programming; NC programming; and a Hurco-specific feature called NC/Conversational Merge that optimizes efficiency even further. Additionally, the Hurco control's technical specifications lead the industry with 4GB RAM, 128GB Solid State Drive, and 10,000 block look ahead.
VC500i Specifications:
- Table Diameter 19.7"
- Table Load 550 lbs
- XYZ Travels 20.5" x 17.7" x 15.8"
- Rapid Feed / Cutting Feed 1,100 IPM
- Tool Type CAT40
- Spindle RPM 12,000
- Spindle HP 17.4 HP
- ATC Stations 30
- Machine Weight 18,520 lbs
