Hurco Companies Inc.

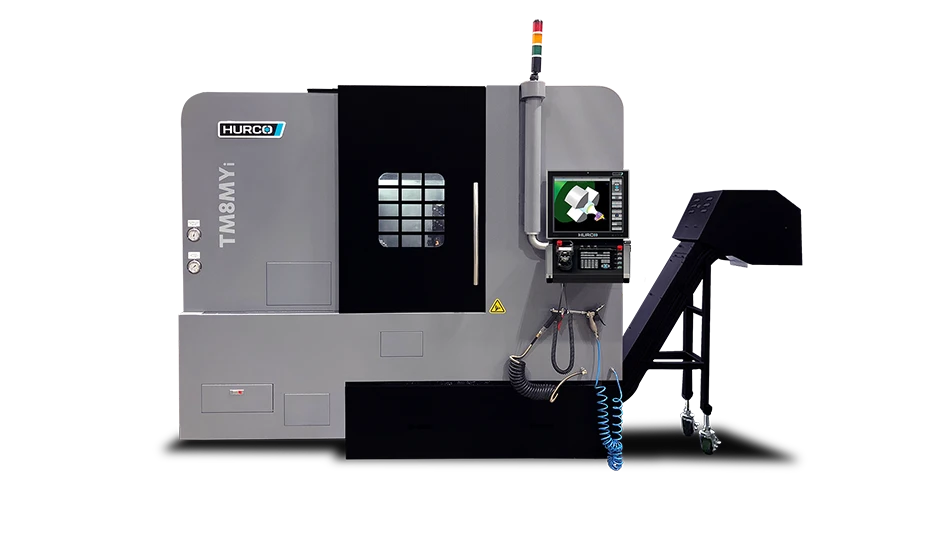

The newest addition to the Hurco Companies, Inc.’s lathe lineup, the TM8MYi was built to fill the gap between Hurco’s general purpose TM Series and high-performance TMX Series of turning centers.
This true slant-bed lathe features live tooling capabilities and a Y-axis that makes it possible to machine a pocket with straight walls and flat bottoms or perform off-center machining operations. It features a BMT55 turret, which is more robust than the more commonly used BMT45, ensuring maximum rigidity. The TM8MYi also has a bi-directional, servo-driven live tool that delivers speeds up to 5,000rpm for dynamic milling, drilling, and tapping. Engineered for durability and performance, the TM8MYi features a Renishaw swing-down tool setter for quick setups, linear roller ways to reduce vibration and increase rigidity, and direct-drive linear axes for faster axis response and improved accuracy.
With an 8" chuck, maximum turning diameter of 12.60", drag-and-drop tailstock, A2-6 spindle nose, and spindle bore diameter of 3.07", this lathe handles a wide range of turning operations. The powerful main spindle, delivering 15.5hp and 72.4 ft-lbs of continuous torque, provides reliable performance for heavy-duty applications.
Of course, the TM8MYi comes equipped with the powerful yet intuitive Hurco control that includes both conversational programming and NC in addition to NC/Conversational Merge, a feature unique to the Hurco control that combines the best of both programming methods.
A few of the other Hurco control features deemed customer favorites include UltiPocket, Advanced Verification Graphics with 3D Solid Rendering, 3D Import, and Data Block Search.
- UltiPocket adds special cutting routines for machining pocket boundaries with islands. This option provides complete clean out of odd-shaped pockets without cutting the islands programmed inside the boundary. The software automatically calculates the tool path around islands eliminating the long task of plotting these shapes.
- The Advanced Verification Graphics feature lets the user view a solid rendering of the tool path that displays dynamic rotation, tool cut simulation, and dynamic view manipulation. This feature reduces scrap, programming time, and proves out the part program.
- 3D Import includes Solid Model Import and 3D DXF. Solid Model Import allows the user to program at the CNC control directly from a STP file. 3D DXF provides the ability to gather dimensional information from the DXF file and program from splines.
- The Hurco control also simplifies the tedious task of searching for a data block or line of code during the editing process with its Data Block Search feature. Users can easily touch the selection they need to edit on the graphics screen, and the cursor will jump to the corresponding program selection.
Hurco is dedicated to continuous innovation to add functionality that helps customers increase productivity and profitability, and to maintain Hurco’s status as the easiest control to program, which helps customers navigate labor shortages and the skills gap.
