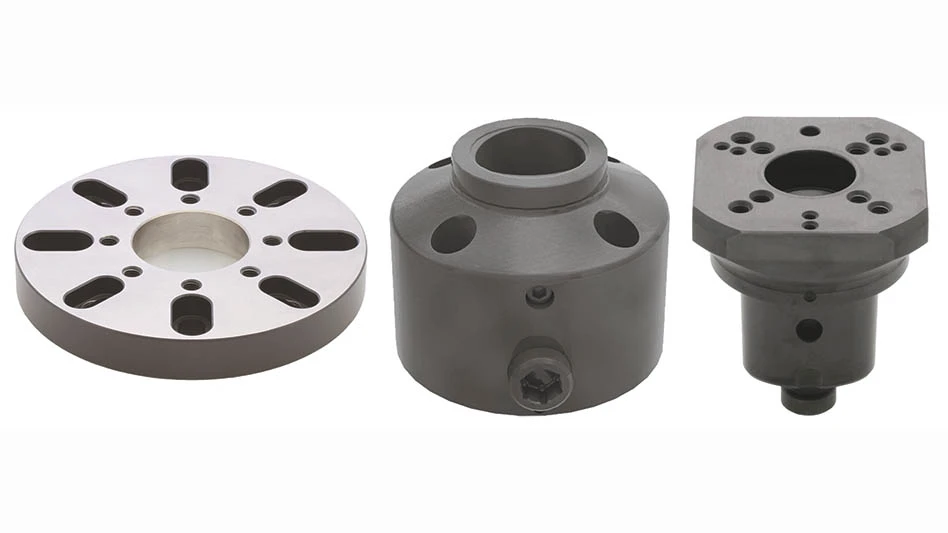

Fixtureworks, a North American manufacturer and supplier of clamps, fixturing accessories, machine tool components, and rollers & bumpers, now offers Quick Zero setting devices. The easy-to-use and easy-to-install devices are used to locate and clamp workpieces to further ensure stability and precise location. The system consists of a mounting plate, base, and holder.
The mounting plate, available with a 230mm diameter, 25mm thickness/depth and mounting holes in M10 and M12, is used to mount the base of the Quick Zero System to a T-slot machine table. It’s made from 1045 steel, precision ground, with a black oxide finish.
The base component of the Quick Zero setting device system, with a diameter of 115mm and clamping force of 6,700 lb. attaches to the plate and provides a mount for the holder component. The base can be simply clamped/unclamped from the holder with a hex wrench and tightening/loosening can be completed with less than 180° turn. The cam shaft comes out of the body when the holder is unclamped so the user can visually check if the holder is unclamped or not. The body is made from 4130 steel, carburized hardened, with a black oxide finish. The cam shaft is made from 4135 steel, quenched and tempered, with a black oxide finish.
This square holder, available with a 72mm in width, and a height of 85mm including riser, is also part of the setting system. These clamp modules are used to locate and clamp a workpiece in conjunction with the base and plate. This holding clamp secures workpieces by attaching them to holding clamps and custom risers. The holder is secured to the base with a hex wrench. The body is made from 4130 steel, carburized hardened, with a black oxide finish. The clamping screw is made from 4135 steel, quenched and tempered, with a black oxide finish.
In addition to these quick zero setting devices, Fixtureworks also offers workholding components and fixturing accessories including workholding supports, pneumatic flex actuator clamps, nutrunner clamps, quick change pneumatic clamping fasteners, quick action sliding locks spring plunger clamps, handles and levers, knobs and grips, equipment handles, hand wheels and cranks, hinges and latches, leveling supports, industrial rubber bumpers, stops and wheels, fixture clamps, clamping locating systems, work positioning elements, vises, grippers, and mechanical linear actuators.
