Automatic Form Measuring System
The F435 and F455 automatic form measuring system completes fully automatic measurement of geometrical tolerances, surface roughness, and straightness in a single setup. An advanced probe design permits roughness and waviness inspections along with form and position tolerance measurements via a simple adjustment on the rotary control.
Designed for workpieces of up to 40kg weight and 430mm in diameter, the systems can measure products such as gear shafts, injection parts, bearing rings, valves, connecting rods, and pistons. Available as a compact desktop version or a complete ergonomic measurement work station, the systems include a frictionless air bearing rotary table that ensures the reproducibility of the smallest tolerances over long periods of time.

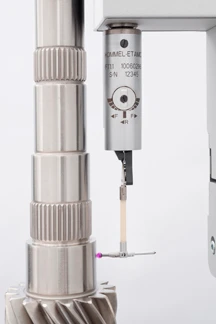

A CNC rotation and tilt module provides fully automatic axial and radial measurements without interruption. Individually motorized axes for tilting (90°) and rotating (270°) allow the probe to access difficult-to-reach measuring positions. The probe direction is reversible with variable free-stroke limits in both directions.
HOMMEL-ETAMIC
1505 West Hamlin Rd.
Rochester Hills, MI 48309
Phone: (248) 853-5888
www.hommel-etamic.com
