There are many ways of automating workpiece holders. They are meant to boost the economic efficiency of workpiece production. However, this goal can only be achieved if the entire manufacturing process runs reliably and without any issues.
EROWA’s VPC (Vise Power Clamp) tooling system was developed for precisely this purpose. In combination with the suitable EROWA loading station, it guarantees an automation process that is reliable and trouble-free. In addition, the universal applications of the tooling system allow for the highest degree of flexibility in workpiece production.
The key components consist of the two VPC chuck sizes (52mm type and 96mm type) and the matching VPC chucking spigots. All the workpiece holders that have been prepared with the common 52mm or 96mm pitches can be clamped in the matching VPC chucks.

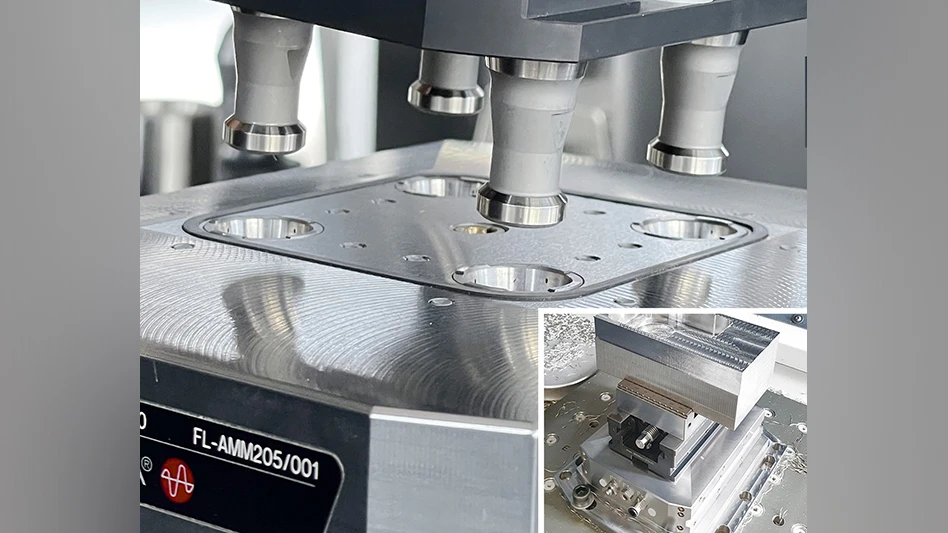

Preparation is simple: screw the VPC chucking spigots into the workpiece holder, the fixture or the workpiece itself, and tighten it – done! The time-tested functional and well-thought-out clamping technology of the VPC chuck includes an integrated Z-support, status monitoring and a circumferential seal.
The VPC chucks can be attached to the machine table directly or through a base plate. Workpiece holders and workpieces are powerfully clamped in the chuck with 15kN of force. Workpieces can be exchanged within seconds with a repeatability of <0.003mm.
The VPC chucking spigots are made of high-quality hardened steel and have a long lifecycle. The ground functional surfaces ensure optimal run-in behavior into the VPC chuck. This guarantees reliable clamping and trouble-free automation.
With the help of adapter pallets, the VPC tooling system can easily be combined with other EROWA tooling systems such as UPC or MTS. In this way, flexibility in workpiece production can be maximized.
Your production hours can be greatly increased when matching the VPC system with one of our EROWA handling devices. As an automation specialist, EROWA offers tailor-made solutions and we’d be glad to advise you and find the individual VPC automation solution that suits you best.
