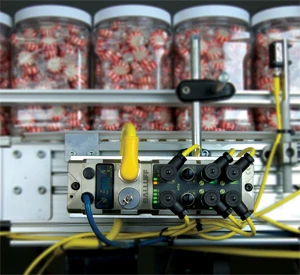

Balluff's new generation of distributed modular I/O can be used in a cost effective way to replace standard slice I/O and distributed I/O solutions. Offering IP67 protection and industry standard connectors, many types of control data can be collected. Using standard 3-conductor cables, up to 4 slave devices can be connected to each master block, which communicates over the industrial Ethernet network to the controller.
In lieu of a backplane each I/O device is connected to an industry-standard M12 port, creating an IP67 connection. With the ability to be installed within a 20 meter radius from the master device, slave devices can be easily distributed across the machine. Utilizing a widely accepted and open point-to-point technology, IO-Link, a distributed modular I/O system is fieldbus independent, is easily configured and is vendor neutral.
Types of distributed modular I/O slave devices:
- Discrete Inputs & Outputs
- Analog Input & Output Channels
- Valve Manifold Control
- Industrial RFID Processors & Heads
Specialty sensors for measurement, position or color detection Advantages of distributed modular I/O systems include:
- Simplified controls quotation process by utilizing fieldbus neutral I/O devices
- Reduction in the total cost per point by simplifying the cabinet cost and the assembly labor involved
- Maximized spare I/O potential by leaving a flexible IO
- Link port free for any type of device: discrete, analog, etc.
- Detailed diagnostic information can be collected from the devices easily and in a standard format
- Flexibility to drive recipe changes directly from the PLC to the devices without frustrating manuals or pushbuttons
Industrial Ethernet master blocks are available with EtherNet/IP or PROFINET protocols. EtherNet/IP masters support daisy-chain connections with a built-in switch as well as support the Device Level Ring (DLR) topology for easier troubleshooting. PROFINET blocks support Fast Start UP (FSU) as well as the Link Layer Discovery Protocol (LLDP) for easy setup right out of the box. Both master devices have easy-to-use, lockable pushbutton displays for quick setup and provide webpages for configuration or diagnostics purposes.
Learn more:
- Download our new whitepaper discussing the advantages of using Distributed Modular I/O
- Download our new brochure on Distributed Modular I/O
- Read our case study and see applications at: networks.balluff.com
- Review our products on our website at: www.balluff.com/io-link
Also, see our distributed modular I/O solutions in action at the upcoming Pack Expo show in Las Vegas, Sept. 26-28. Stop by and see Balluff at booth# S-5730.
Balluff Inc., the U.S. subsidiary of Balluff GmbH, Neuhausen, Germany, is a leading manufacturer of a wide range of inductive, photoelectric, vision, capacitive and magnetic sensors as well as linear position transducers, RFID systems, and networking products. Balluff products for OEM and factory floor solutions are used to control, regulate, automate, assemble, position, and monitor manufacturing, assembly, and packaging sequences for industries including: metalworking, automotive, plastics, material handling, wood processing, aerospace, alternative energy, medical, electrical, and electronics.
