Dillon Manufacturing, Inc.

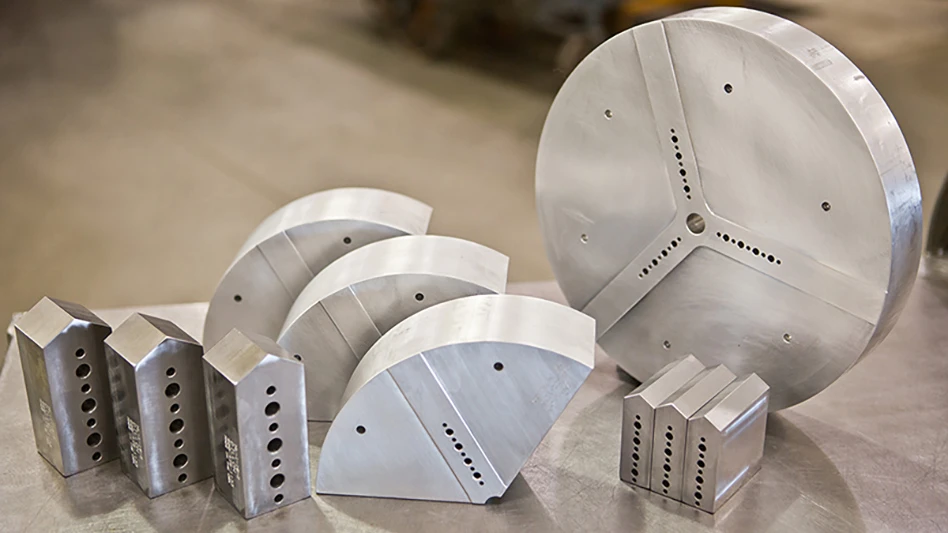

Dillon Manufacturing, Inc., a leading manufacturer of hard and soft jaws for workholding applications, presents their pin location jaws which firmly yet safely grip deformation-prone parts. Ideal for thin-walled components, tubing-type products, and other sensitive workpieces, Dillon manufactures full grip (pie) blank jaws and soft jaws for Northfield, Microcentric and others. Each is CNC milled to provide maximum accuracy for workpiece location, enabling air chucks to hold sensitive workpieces firmly. Standard sizes available, or experience applications engineers can prepare proposals for custom jaws at no charge. Dillon Pin Location jaws are typically available with industry-leading lead-times of 3 days or less.
Full grip jaws are manufactured for chuck sizes ranges between 4” and 10” diameters and are available in 1018 steel and 6061 aluminum. Jaw heights are available between 1” and 4”. Soft jaws are available in 1018 steel and 6061 aluminum, in heights from .75” to 5.00 inches, and widths from .75 to 3.00 inches.
Dillon Manufacturing, Inc. manufactures a complete line of standard and custom workholding solutions including chuck jaws, chucks, vises jaws, soft jaws, hard jaws, collet pad jaw systems, chuck lubrication, and more. With ample production capacities and processes, Dillon can manufacture large production runs of special jaws with the same speed and accuracy as small runs.
