Accutek Inc.
Accutek Inc. announces the introduction of the latest Shrink Fit Technology with the Diebold brand of Shrink Fit machines. The product line-up is four new machine models with Next-Generation technology. The new US1100 Series Shrink Fit machine offers two unique technologies not offered by any other shrink fit brand currently on the market - the “OneTouch” display and “Pyrometer Coil” technology. These technological advancements are raising the bar in the Shrink Fit tooling world.
One Touch Display
- No more Operator Errors
- No more Overheating of holders
- No selection of Parameters required.
- Shrink process with just one touch.
- Graphical visualization of shrinking process
- Hands-Free operation with optional foot pedal.
- IoT 4.0 Ready with ethernet and data exchange.
TempControl Safety with Pyrometer Coil
Our new generation of US1100 Shrink Fit Machines is now available with the Pyrometer Coil technology standard. This technology is automated with direct temperature monitoring, a worldwide unique solution for reliable and particularly stable tool shrinking. The patented Pyrometer technology, with TempControl sensors in the coil, measures the surface temperature of the holder during the shrinking process and controls the process. The maximum programmed temperature is controlled and once it is reached, the bore is kept open longer to allow for tool change. This feature and technology virtually eliminate the possibility of overheating the tool holder during the shrinking process.
Integrated with Watercooler TubeChiller

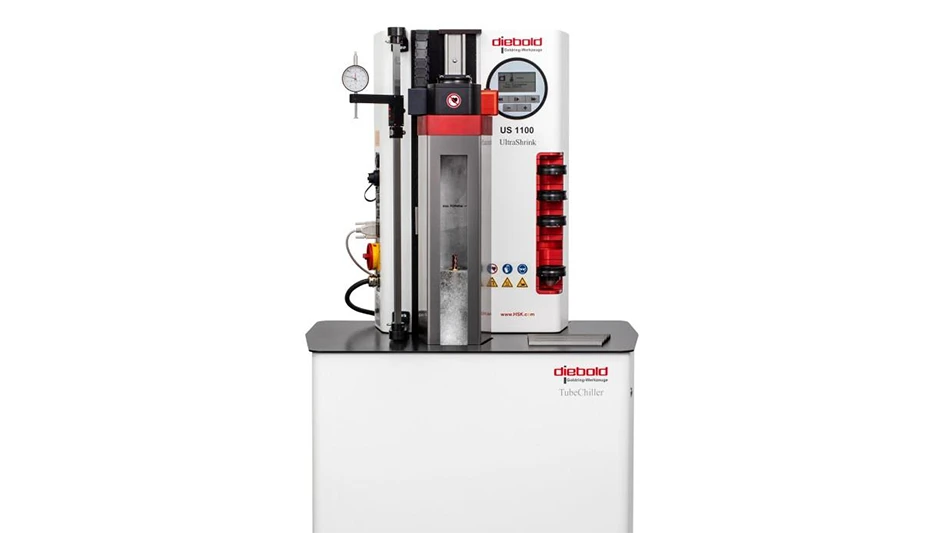

With the US1100 TubeChiller we offer the fully automatic solution for an automated shrinking and subsequent cooling process. The TubeChiller technology was developed to combine our shrinking devices of the US1100 series with automated cooling. Once the shrinking process is completed, the cooling takes place automatically, without the risk of the operator having any contact with hot tools. After the shrink process the cooling tube lifts from the TubeChiller housing and pushes the coil out of the way. During this period, the TubeChiller is filled with coolant as it rises and flows around the tool holder. The coolant is agitated with air to help maintain a uniform coolant temperature since heat dissipates through the air bubbles. After the cooling process, the TubeChiller recedes back into the housing as it air dries the holder with blasts of air. In less than 2 minutes of total cycle time, you go from worn tool to new tool and ready to put the holder back into the CNC machine spindle.
Diebold/Accutek Shrink Fit Technology: The SMART CONCEPT
