Ingersoll Cutting Tools compact spindles

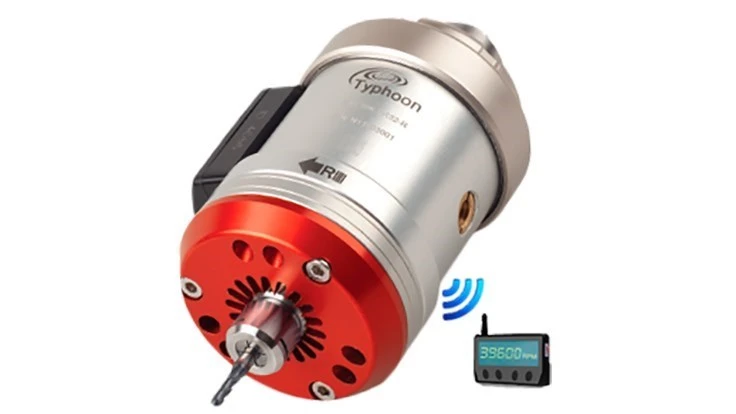

Rockford, Illinois - Ingersoll Cutting Tools' Typhoon HSM Jet Spindles are coolant driven high-speed compact spindles for small diameter tools on low rpm machine tools.

The new Typhoon spindles have been developed for use when high rpm is required for small diameter tools on limited rpm machines. The new spindles are for semi-finish and finish machining applications such as milling, drilling, and grinding.

The system utilizes the machine tool’s existing coolant supply, driven by a high-pressure pump (minimum 290psi) as an energy source to rotate a turbine up to 40,000rpm.

Typhoon is not intended to replace the machine’s spindle, but rather to upgrade the existing machine, providing improved performance, faster machining, better surface quality and extended tool life.

Features:

• Reduce cycle time by as much as 70%
• Coolant driven spindle with real time rpm monitoring
• 20,000rpm - 30,000rpm - 40,000rpm
• 4 to 5 times faster
• Plug & play
• Wireless real-time rpm monitoring
• Wide range of applications

4 to 5 times faster

• 40,000rpm on your machine

Coolant-driven spindle

• The system uses the existing machine coolant ?ow to rotate the HSM Jet Spindle without an additional energy source

Plug & play

• As easy to connect as any other tool in your magazine. HSM Jet Spindle is available in several mounting adaptation types as:
• ER32 collet chuck with a special tightening nut, suitable for all standard tool holders with an ER32 seat
• Integral options with various adaptations: HSK A63, C 5 & 6, BT 30 & 40, CAT 40 & DIN69871 40
• The HSM Jet Spindle is compatible with standard ER11 collets for tool clamping

Wireless real-time rpm monitoring

• Real time rpm monitoring allows to optimize the cutting tool’s machining conditions according to the actual rotational speed in the workpiece

Source: Ingersoll Cutting Tools
