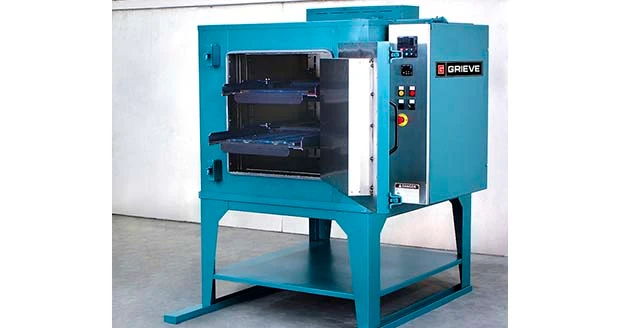

Round Lake, Illinois – No. 1034 is a 550ºF (287ºC), electrically-heated universal style oven, currently used for heating heavy metal dies at the customer’s facility. Workspace dimensions of this oven measure 24" W x 24" D x 24" H.
Incoloy-sheathed tubular elements heat the oven chamber with 7kW of power, while a 400cfm, 1/3hp recirculating blower provides universal front to rear airflow to the workload.
This Grieve universal oven features 6" insulated walls, aluminized steel exterior, Type 304 stainless steel interior with 2B finish, plus two 24" wide x 24" long shelves supported by rollers and each rated at 300 lb load capacity. An integral oven leg stand is also provided.
No. 1034 controls include a digital indicating temperature controller, manual reset excess temperature controller with separate contactors and recirculating airflow safety switch.
Source: Grieve Corp.
