3D printer creates first object in space



Washington – The International Space Station’s 3D printer has manufactured the first 3D printed object in space, paving the way to future long-term space expeditions.



"This first print is the initial step toward providing an on-demand machine shop capability away from Earth," said Niki Werkheiser, project manager for the International Space Station 3D printer at NASA's Marshall Space Flight Center in Huntsville, Alabama. "The space station is the only laboratory where we can fully test this technology in space.”



NASA astronaut Barry "Butch" Wilmore, Expedition 42 commander aboard the International Space Station, installed the printer on Nov. 17, 2014, and conducted the first calibration test print. Based on the test print results, the ground control team sent commands to realign the printer and printed a second calibration test on Nov. 20. These tests verified that the printer was ready for manufacturing operations. On Nov. 24, ground controllers sent the printer the command to make the first printed part: a faceplate of the extruder’s casing. This demonstrated that the printer can make replacement parts for itself. The 3D printer uses a process formally known as additive manufacturing to heat a relatively low-temperature plastic filament and extrude it one layer at a time to build the part defined in the design file sent to the machine.



On the morning of Nov. 25, 2014, Wilmore removed the part from the printer and inspected it. Part adhesion on the tray was stronger than anticipated, which could mean layer bonding is different in microgravity, a question the team will investigate as future parts are printed. Wilmore installed a new print tray, and the ground team sent a command to fine-tune the printer alignment and printed a third calibration coupon. When Wilmore removes the calibration coupon, the ground team will be able to command the printer to make a second object. The ground team makes precise adjustments before every print, and the results from this first print are contributing to a better understanding about the parameters to use when 3D printing on the space station.



“This is the first time we’ve ever used a 3D printer in space, and we are learning, even from these initial operations,” Werkheiser said. “As we print more parts we’ll be able to learn whether some of the effects we are seeing are caused by microgravity or just part of the normal fine-tuning process for printing. When we get the parts back on Earth, we’ll be able to do a more detailed analysis to find out how they compare to parts printed on Earth.”

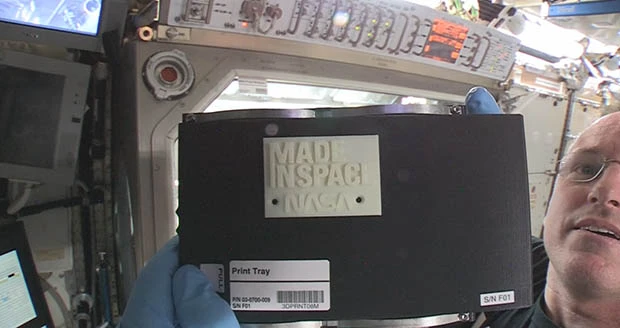

The 3D Printing in Zero-G Technology Demonstration on the space station aims to show additive manufacturing can make a variety of 3-D printed parts and tools in space. The first object 3D printed in space, the printhead faceplate, is engraved with names of the organizations that collaborated on this space station technology demonstration: NASA and Made In Space Inc., the space manufacturing company that worked with NASA to design, build, and test the 3D printer. Made In Space is located on the campus of NASA’s Ames Research Center in Moffett Field, California.



“We chose this part to print first because, after all, if we are going to have 3D printers make spare and replacement parts for critical items in space, we have to be able to make spare parts for the printers,” Werkheiser said. “If a printer is critical for explorers, it must be capable of replicating its own parts, so that it can keep working during longer journeys to places like Mars or an asteroid. Ultimately, one day, a printer may even be able to print another printer.”



Made In Space engineers commanded the printer to make the first object while working with controllers at NASA’s Payload Operations Integration Center in Huntsville. As the first objects are printed, NASA and Made In Space engineers are monitoring the manufacturing via downlinked images and videos. The majority of the printing process is controlled from the ground to limit crew time required for operations.



"The operation of the 3D printer is a transformative moment in space development," said Aaron Kemmer, chief executive officer of Made In Space. "We’ve built a machine that will provide us with research data needed to develop future 3D printers for the International Space Station and beyond, revolutionizing space manufacturing. This may change how we approach getting replacement tools and parts to the space station crew, allowing them to be less reliant on supply missions from Earth."



The first objects built in space will be returned to Earth in 2015 for detailed analysis and comparison to identical ground control samples made on the flight printer after final flight testing earlier this year at, NASA’s Marshall Center prior to launch. The goal of this analysis is to verify that the 3D printing process works the same in microgravity as it does on Earth.
