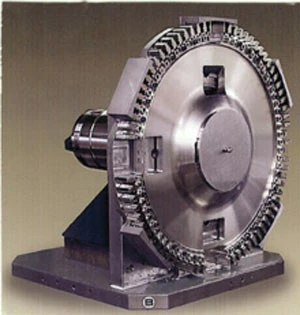

Specially-Designed Right Angle Fixture for Rotor Housings

Royal Workholding right angle fixtures for rotor housings are specially designed for machining various test pockets and slots, allowing four operations from a common diameter.

Designed and built in the USA, these right angle fixtures are part of a series of highly specialized hydraulic and manual operated fixtures produced by Royal to provide the aerospace industry with the correct clamping forces required in machining today's exotic materials.

Information on special and custom requirements are available upon request. Royal Machine & Tool Corporation serves the world's leading industries by designing and building custom and standard workholding devices from simple manual fixtures to sophisticated hydraulic fixtures with multiple faces.

In addition, Royal provides custom and standard chucks of all types for rotating and nonrotating applications, as well as a complete range of contract machining options and services from single prototype machining to high volume production requirements.
