Parts Accumulator

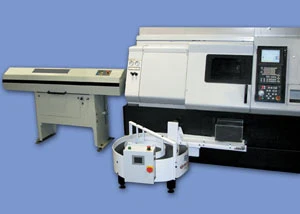

Rota-Rack parts accumulator is a lean, cost-effective device enabling any barfed CNC lathe to run unattended for extended periods of time.


Rota-Rack parts accumulator is a lean, cost-effective device enabling any barfed CNC lathe to run unattended for extended periods of time. The unit indexes each time a finished part exits the machine, safely collecting and protecting finished workpieces.

Benefits of the Royal Rota-Rack include: the ability to run a second or third shift with existing equipment and no additional employees, first-shift employees are freed up to handle more productive tasks, risk of part damage is greatly reduced, and parts are kept in order for quality control purposes.

The Royal Rota-Rack consists of a heavy-duty welded steel turntable, solidstate PLC control, and optional integrated conveyor. All contact surfaces are covered with a high-lubricity UHMW plastic for optimum workpiece protection. A one-meter diameter turntable provides over 850in2 of usable surface area and has a payload capacity of 700 lb.

The universal design of the Royal Rota-Rack enables it to be used with any CNC lathe that is equipped with a parts catcher. The unit can be mounted either to the left or right side of the machine tool, and it is height-adjustable from 11" to 50".

IMTS BOOTH F-2124
Royal Products
Hauppauge, NY
royalprod.com
