Double-Column

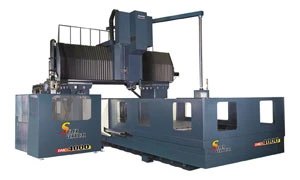

The DMC-4000x2800-5F double-column machining center is a 155,000 lb heavyweight bridge mill featuring a vertical spindle and horizontal spindle attachment changer for five-sided machining of exceedingly large and heavy parts.


The DMC-4000x2800-5F double-column machining center is a 155,000 lb heavyweight bridge mill featuring a vertical spindle and horizontal spindle attachment changer for five-sided machining of exceedingly large and heavy parts. Solid machine construction is key to the DMC-4000x2800-5F's construction. It boasts heavy Meehanite castings that provide the strength and vibration dampening required for excellent surface finishes and long cutting tool life. This heavy duty 35hp fixed double column vertical machining center also features a moving table and fixed column for maximum rigidity. The massive 90° bridge has a 48" wide saddle and uses huge boxways to keep the spindle center line extremely close to the bridge for rigidity. This design provides a full 4ft span across the Y axis ways for exceptional support of the massive headstock. The large headstock provides 42" of Z axis stroke and excellent rigidity.

The DMC-4000x2800-5F's five face head delivers a full 360° rotation with minimum increments of 5°. The head, which is automatically attached and detached, is stored in its own cradle outside the machining area. The head is locked in position by a face gear coupling for rigidity and accuracy. The ATC system works with both the vertical and horizontal spindles for truly automatic operation. Both CAT-50 spindles are driven by a 35hp Fanuc high torque spindle motor and two-speed ZF gear box. The vertical 6,000rpm spindle is oil cooled for stability and long life.
