Bridge-Type Machining Center

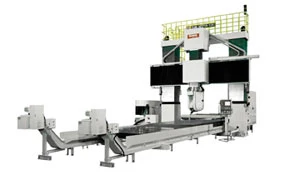

The RB-200F Series 5-axis bridge type machining center offers efficient and accurate machining of multiple angles and 3D contours.


The RB-200F Series 5-axis bridge-type machining center offers efficient and accurate machining of multiple angles and 3D contours. Boasting massive spindle head and ram assemblies, as well as cast iron, cast steel and steel weldment construction, SNK's RB-F Series ensures rigid and precise operation. The powerful RB-F spindle (30kW/25kW, 40rpm to 10,000rpm or 55kW/50kW, 150rpm to 15,000rpm) provides ample power for machining of monolithic aerospace parts. The combination of the ISO 50 taper spindle and a 394ipm or optional 590ipm cutting feedrate (X, Y) enables high-speed cutting. The table size of the RB-200F is 79" x 157" while the load capacity is more than 33,000 lb (15,400 for the high-speed option). Travels are 167" x 114" x 23.6" x 33.5"; spindle head rotation (B) is ±95° and spindle head rotation (C) is ±360° (continuous rotation optional).

Also on display will be the Niigata HN80D horizontal machining center featuring traverse rates of 1,181ipm and feedrates of 592ipm on heavy-duty boxways; the SNK Nissin HBM 130 series horizontal boring and milling machine; and the Prodigy GT-27 gang tool lathe with FANUC robot.

IMTS BOOTH A-8432
SNK America Inc.
Elk Grove Village, IL
snkamerica.com
