3D printed metal parts go hypersonic

Purdue Researchers use AM injector components to create Mach 6 conditions for a ground-testing facility.


Maurice J. Zucrow Laboratories
All photos courtesy of Maurice J. Zucrow Laboratories

Supersonics denotes aircraft breaking the sound barrier at Mach 1 and extends to around Mach 5; 5x the speed of sound and more than 3,500mph at sea level.

Researchers at Purdue University are learning that exploring the hypersonic environment is a perfect proving ground for metal 3D printing. Recent work demonstrates advanced additive manufacturing (AM) technology is now capable of producing fully dense, end-use parts with robustness surpassing traditional methods such as casting.

Bizarre world of hypersonics

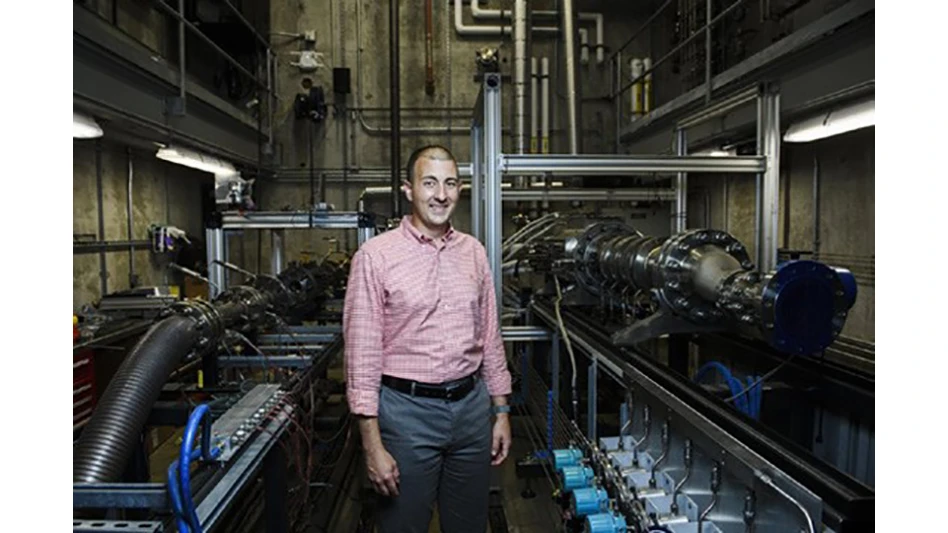

“There’s a line you cross at around Mach 5,” says Purdue Associate Professor Carson Slabaugh, whose team at Zucrow Laboratories has studied high-speed combustion systems since he started his lab at Purdue in 2015. “When a vehicle flies that fast, extreme compression and heating of the air flowing around and within the fuselage occurs. At Mach 5, it’s about a six-fold increase in the temperature and a pressure increase of a few hundred times. That kind of thermal and mechanical loading causes the regime of aerodynamics and thermodynamics and structural mechanics to completely change compared to lower- speed systems.”

According to Slabaugh, this means coming back through the atmosphere in response to gravity, “You’re traveling through a fireball at hypersonic speeds.” This happens when astronauts return to Earth from the International Space Station and is why they are protected by massive heat shields.

If you want to achieve powered hypersonic flight with a controllable aircraft, unmanned vehicle, or missile, you need to add an engine.

Above Mach 5, the temperature of atmospheric air as it rushes by is thousands of degrees and the pressure is several hundred psi. The air can become chemically reactive if you fly fast enough. The extreme flow conditions become a challenge to vehicle-propulsion systems whose thrust comes from burning fuel.

“If the incoming air is too hot, you really can’t add more useful energy to the flow by burning fuel. Dissociation effects become very strong, and the reactions cannot proceed to completion,” Slabaugh says. “Cooling also becomes exceedingly difficult at these flight speeds.” To avoid what rocket scientists call unplanned rapid disassembly, the team at Zucrow Labs focused on learning about the critical turbulent (reacting) flow physics that must be accounted for when an engine reaches hypersonic speeds.

The team partnered with Velo3D to 3D print fuel injectors with complex geometries achieving very high fuel-air mixing performance. The parts couldn’t have been made with conventional fabrication methods, especially not with the high-temperature, high-strength metal superalloys needed to survive the extreme testing conditions. The teams worked to rapidly prototype the Purdue team’s designs for testing, evaluation, and iteration. Slabaugh’s team used the data from the prototypes to scale up their designs into a full-scale system.

Relying on earthbound solutions

Because designing and manufacturing parts for hypersonic conditions is expensive, much of the R&D for developing hypersonic capabilities has been supported by NASA and defense-level budgets. Flight testing the systems is expensive and has major limits on what can be measured for research purposes. Engineers lean heavily on earthbound solutions to develop new technologies while keeping costs in check. They’re recreating conditions experienced during hypersonic flight and proving engine components in ground-test facilities.

“We engineer components that’ll experience hypersonic environments while going zero miles per hour and staying bolted to the ground,” he says. Advanced computer simulation software has been a valuable tool for engineers exploring the relationship between complex physics and physical structures. Methods such as computational fluid dynamics (CFD) and fluid-structure interaction (FSI) can simulate material and structural behavior in response to the flow of air or liquid, allowing engineers to optimize designs before ever manufacturing anything.

Hypersonics are extremely unpredictable, defeating the most sophisticated computer-simulation capabilities.

“One fundamental problem is that we can’t reliably predict the flow and flame conditions within the engine at hypersonic conditions,” Slabaugh says. “Reacting, turbulent-flow is extremely complicated to model with CFD; we’re at such extreme levels of turbulence and flow conditions we can’t capture everything happening as the flame evolves. Within the flow you have evolving density, viscosity, velocity, species and, when you add in mechanical structures such as engine walls to contain the flame, you get more complicated with cooling designs affecting the flow and flame. The computational power you need to analyze the smallest part of the engine is expensive and the result is many assumptions must be made for integrated design analysis.”

Solution for hypersonics-worthy parts

So how do you get engineers unstuck from this problem? Leave simulation behind and go back to the real-world, classic, manufacturing paradigm of build and break, and use advanced metal AM for the build part.

“We’re working on a very large 3D-printed burner, to create the hypersonic flow environment on the ground in a test cell,” Slabaugh says. “If you want to test a hypersonic vehicle on the ground you build a rocket engine with a big converging-diverging nozzle and a supersonic plume of extremely hot gas; the fireball the vehicle is flying through. The whole system is bolted down into concrete. You stick components you’re designing inside the plume and watch what happens.”

Slabaugh’s team designed the injectors for the combustor to produce specific turbulent flow fields mixing fuel at a certain rate and allowing stabilization of a powerful flame in a very compact volume, creating the conditions for the things they’re going to test.

Quickly 3D printing injector geometries for the test combustor made of high-temperature-resistant superalloy Hastelloy X enabled the Purdue team to rapidly identify the best designs.

“We had approached this problem with traditional subtractive manufacturing techniques before,” says Nick Strahan, test engineer on Slabaugh’s team. “But there were features in our design that limited the performance of the combustor and doing it additively enabled us to integrate our unique geometry much more easily.”

Swerving past traditional manufacturing

Using traditional subtractive manufacturing would’ve meant casting individual parts, requiring long, drawn-out cycles of tooling, moldmaking, and design iteration.

The engineers varied the flow passages of the injector with 5 different designs, printed them, and ran them through hypersonic-relevant test conditions.

The team could isolate the highest performer having the stationary and dynamic features they were looking for in 2 weeks.

The high-performance injector met the critical parameters the engineers valued most for performance of the combustor: flame power as a proxy for the simulated flight conditions and flame stability, a metric for the health and efficiency of the combustor.
