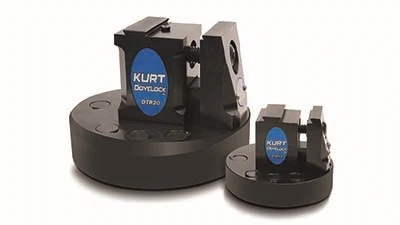

Minneapolis, Minnesota – Kurt’s new DoveLock dovetail vises offer clamping strength and allow access to 5 sides of the workpiece in 5-axis, 4-axis and palletized CNC machining systems. DoveLock vise is available in two sizes, a 1" jaw width DTR10 model and 2" jaw width DTR20 model.
With a jaw opening of 0.33" to 1.65" depending on the DoveLock model, the reversible jaws of the vise provide for a wider clamping range of the dovetail workpiece.
Varying sized dovetail widths from setup to setup can be accommodated because of the moveable jaw stroke. This allows the machinist to use the optimum sized dovetail strip best suited for the part size and configuration. Additionally, preparation of the part blank does not require the dovetail holding strip to be machined within 0.001", therefore machining is much faster than with other dovetail styles holding fixtures.
Designed and built from pre-hardened 4140 steel, the DoveLock vise has a robust design and minimizes high machining pressure, deflection, and clamp creep. Anti-deflection control is also accomplished by two key features of the vise: 1) the moveable jaw slide is retained within the stationary jaw, 2) the vise's clamping screw is positioned at the top of the clamping envelope, providing additional anti-deflection control.
Both Dovelock models come integrated with a mounting base pre-configured with hole patterns to fit most CNC machines. Additional riser bases or pallet options are available from the factory.
Kurt Manufacturing Co.
