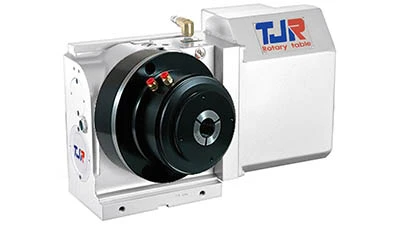

The TJR AR-5C pneumatic collet rotary table provides an alternative to 3- or 4-jaw chucks for users whose workpieces require the use of 5C collets.
The AR-5C rotary table employs a 5C collet closer system and can be integrated into a CNC machine control as a full 4th axis or operated as an indexer via TJR’s single axis controller (SAC). The table features a pneumatic braking system and is available in right-handed and left-handed motor mount configurations. A radial-axial preloaded bearing system offers rigidity while a dual-lead worm shaft and worm gear provide indexing accuracy in both directions.
Table diameter is 125mm (4.92"), with a thru-hole diameter of 35mm (1.37"). Minimum indexing increment is 0.001° and maximum table rotation speed is 83.3rpm. Peak allowable workpiece load is 100kg (220 lb). The table weighs 34kg (75 lb) and servo motor models are available for Fanuc or Mitsubishi tapers.
CNC Indexing & Feeding Technologies is the exclusive U.S. importer of TJR Precision Technology Co. rotary table products, including horizontal, vertical, and tilt rotary tables, indexers, and accessories.
